Balteau GF Series Portable X-Ray Generators
Introduction
Portable X-Ray Technology for Field Radiography
The GF Series is designed for inspection professionals who require dependable X-ray equipment that can be transported and operated in demanding field conditions. The generators are compact relative to their output capabilities and incorporate features such as air cooling, high-frequency operation, automatic preheating, energy recovery technology, and lightweight cable systems. The range includes generators from 160 kV through to 300 kV, allowing customers to select a configuration suited to different material thicknesses and inspection requirements.
Our GF Series Product Range

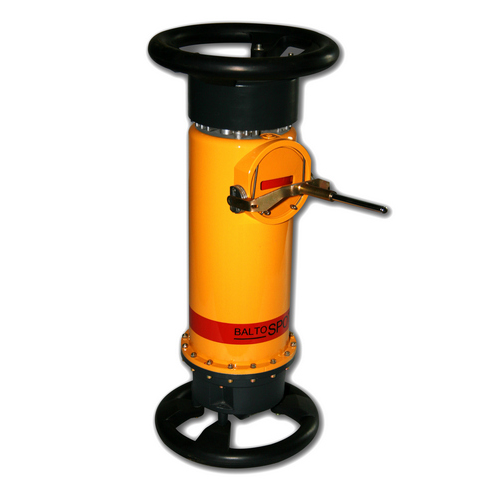

GFD 165
The GFD165 is a compact directional X-ray generator designed for applications where size and weight are important considerations. With a maximum output of 160 kV and 5 mA, it is particularly suited to field applications where equipment needs to be frequently moved or positioned in confined spaces.

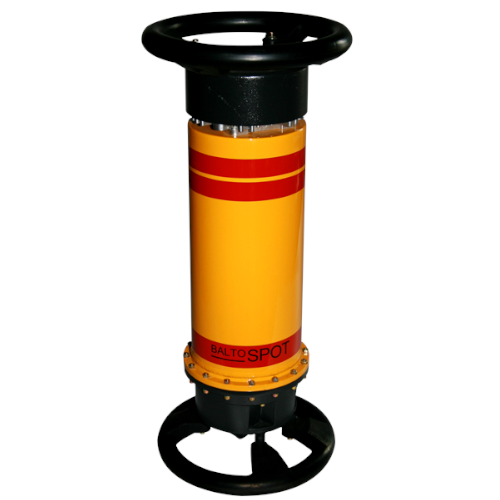

GFC 165
The GFC165 is a panoramic portable X-ray generator derived from Balteau’s crawler technology. With a 50–160 kV range and up to 5 mA, it provides a compact solution for field radiography where portability and panoramic exposure capability are important.

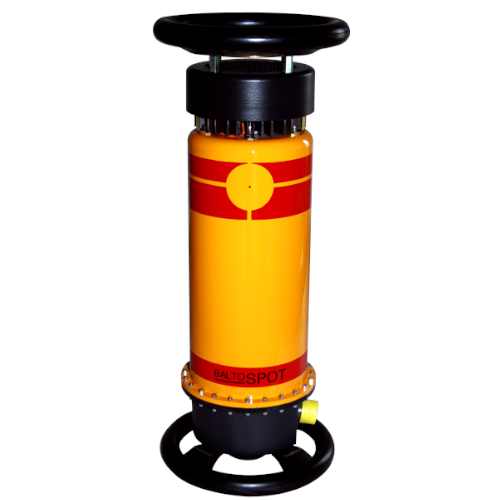

GFC 205
The GFC205 is a medium-power panoramic portable X-ray generator delivering up to 200 kV and 5 mA. Its crawler-derived design provides a reliable solution for field applications and medium-thickness inspection requirements.

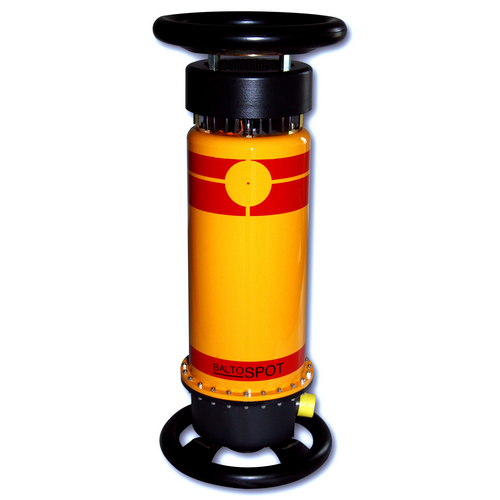

GFC 305
The GFC305 is the high-power member of the GF Series, providing up to 300 kV and 5 mA. Designed for demanding industrial radiography, it offers increased penetration capability for applications involving greater material thicknesses.

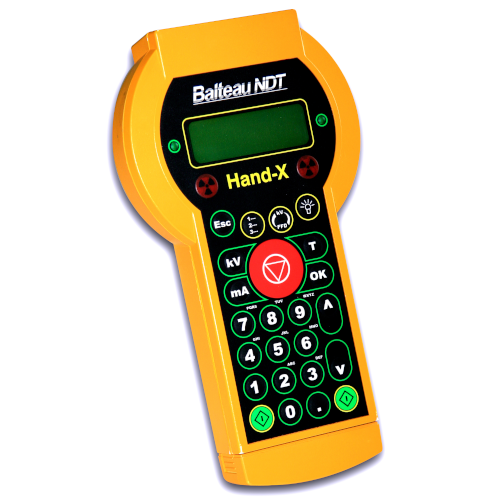

Hand-X
The Hand-X is the lightweight control unit designed to operate Balteau’s pulsed-wave generators. It provides a compact, portable interface for field radiography and can be supplied with GF Series generators, including the GFD165, GFC165, GFC205, and GFC305. Balteau specifies a weight of approximately 12 kg plus 0.9 kg for the remote control.

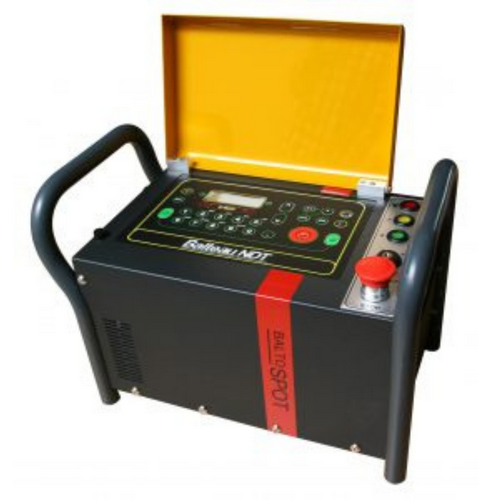

CF2000
The CF2000 is a rugged control unit designed to operate Balteau’s pulsed-wave generators. It is engineered for demanding field conditions and can maintain stable output even when supplied by less consistent power sources. The unit incorporates automatic preheating, programmable exposure controls, memory functions, and multiple safety features.
GF Series Key Features
Depending on the selected configuration, the GF Series provides:
- High-frequency X-ray technology
- Air-cooled tubeheads
- Directional and panoramic configurations
- Compact and portable designs
- Automatic preheating
- Energy recovery technology
- Lightweight cable systems
- Stable X-ray output
- Low power consumption
- Integrated safety features
- Geiger-Müller detector
- CF2000 or Hand-X control options
Industrial Applications
Balteau GF Series generators are suited to a broad range of industrial radiographic applications, including:
- Weld inspection
- Pipeline inspection
- Oil & gas
- Petrochemical facilities
- Power plants
- Shipbuilding
- Construction sites
- Tanks and reservoirs
- Pressure vessels
- Manufacturing
- General engineering
- Conventional film and CR applications
Choose the Right GF Series Generator
The GF Series provides several output levels and configurations, allowing inspection professionals to select equipment according to material thickness, inspection geometry, required penetration, and portability requirements.
From the compact GFD165 for applications where mobility and access are priorities to the GFC305 for higher-power panoramic radiography, the range provides a flexible solution for different industrial inspection environments.
Why Choose Industronic Engineering?
Industronic Engineering supplies professional Balteau NDT X-ray equipment for industrial radiographic testing applications. Our technical expertise allows us to help customers identify the appropriate generator, control system, and accessories for their specific inspection requirements.
Whether you need a compact directional generator, panoramic field system, or higher-power X-ray solution, Industronic Engineering can assist with the selection and supply of the appropriate Balteau GF Series equipment.
Request a Quote
Looking for a Balteau GF Series portable X-ray generator? Contact Industronic Engineering for technical assistance, product availability, and pricing on the GFD165, GFC165, GFC205, GFC305, Hand-X, and CF2000 systems.
