Balteau XSD Series X-Ray Generators
Introduction
The Balteau XSD Series is a comprehensive range of industrial X-ray systems designed for demanding radiographic testing and non-destructive testing (NDT) applications.
The range combines XSD high-voltage X-ray generators, dedicated control units and high-performance cooling systems, providing a complete solution for industrial radiography applications.
With generator configurations ranging from 160 kV to 450 kV, together with dedicated control and cooling equipment, the XSD Series provides flexible solutions for different industrial inspection requirements.
Industronic Engineering & Supplies supplies Balteau XSD Series equipment for professional industrial radiography and NDT applications.
XSD Series Industrial X-Ray Solutions
The XSD Series is designed around a modular system approach, combining X-ray generation with dedicated control and cooling equipment. The range includes four XSD generator configurations, two control units and three cooling systems. This allows equipment to be selected and configured according to the requirements of the specific installation and application. The range provides different output configurations, allowing inspection professionals to select equipment appropriate to the material, component, and radiographic testing procedure.
XSD X-Ray Generators

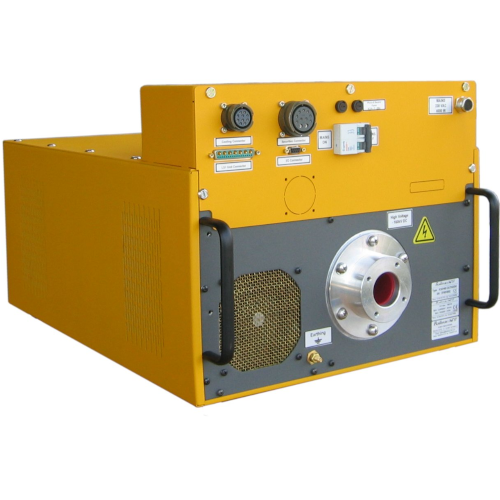

XSD160 – 4 kW
The XSD160 provides a 160 kV, 4 kW X-ray generation solution for industrial radiographic testing applications.

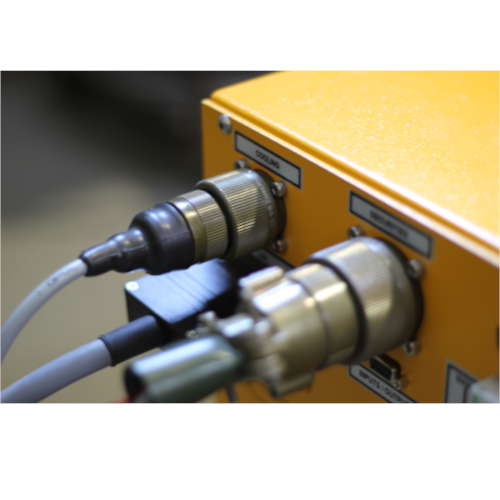

XSD225 – 4 kW
The XSD225 provides a 225 kV, 4 kW X-ray generation solution for industrial radiography and NDT applications.

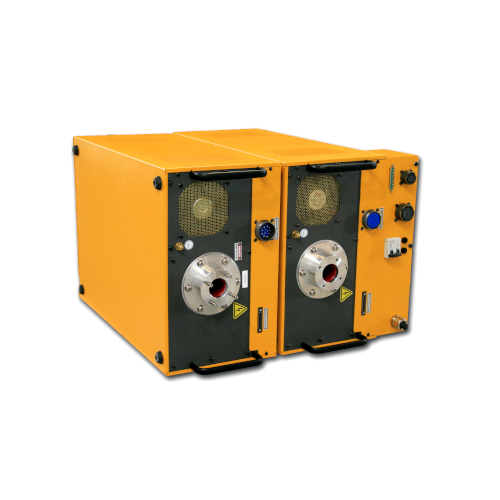

XSD320 – 4.5 kW
The XSD320 provides 320 kV and 4.5 kW, offering increased X-ray energy for more demanding industrial radiographic inspection applications.

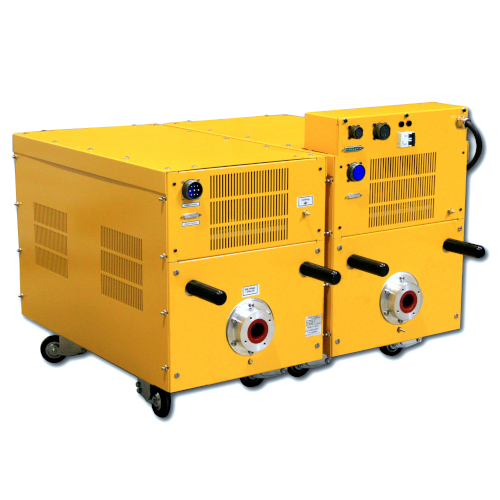

XSD450 – 4.5 kW
The XSD450 provides 450 kV and 4.5 kW, representing the highest-voltage configuration within the XSD generator range.
XSD Control Units

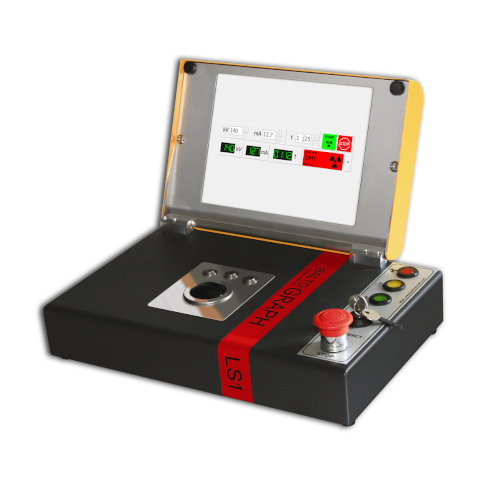

LS1
The LS1 is an industrial X-ray control unit featuring true measurement of kV and mA, a TFT colour screen and memory capacity for up to 10,000 settings.

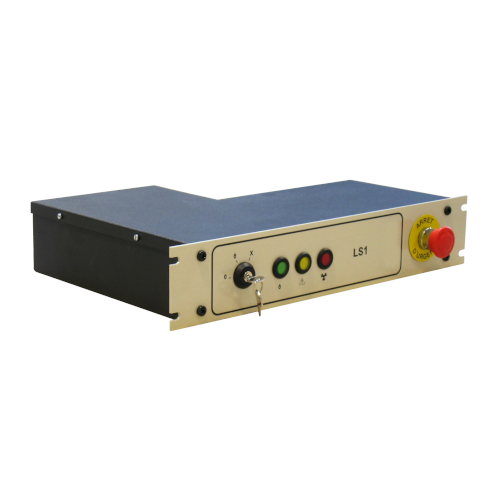

LS1C2
The LS1C2 provides X-ray generator control functionality with additional system I/O capability.
The unit includes 4 × Sub-D9 connections, providing additional connectivity for system integration.
XSD Cooling Systems

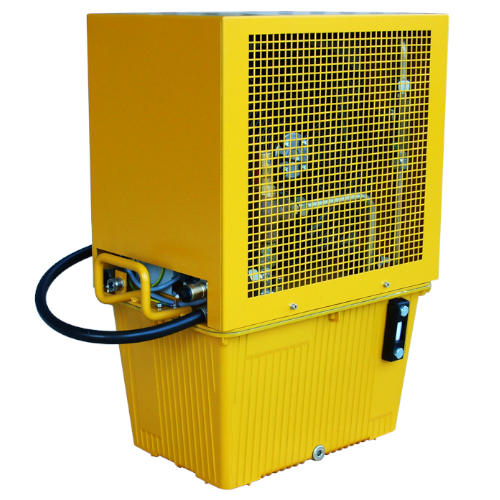

OACU4500
The OACU4500 is a high-capacity oil cooling unit providing 4,500 W of cooling capacity for demanding X-ray system applications.

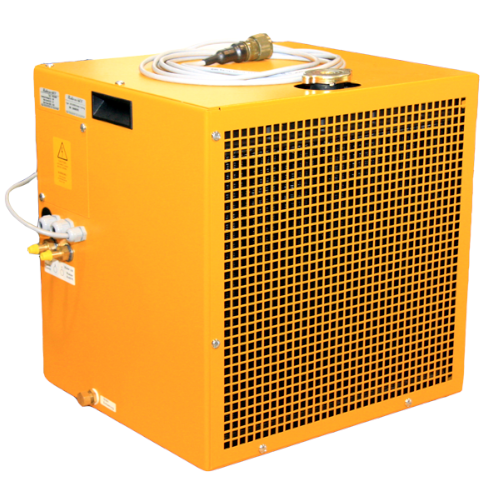

WCU3000
The WCU3000 is a water cooling unit providing 3,000 W of cooling capacity for compatible industrial X-ray applications.

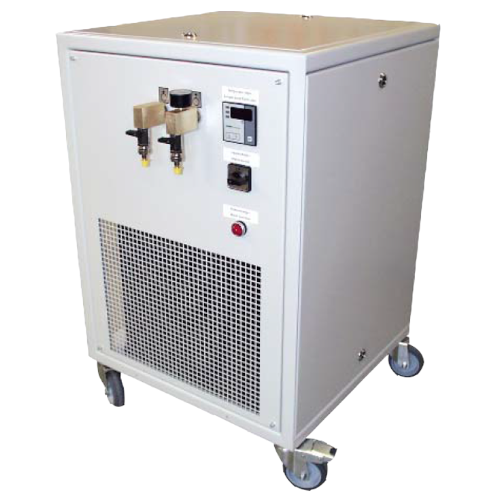

WLK3000
The WLK3000 is a water cooling system providing 3,000 W cooling capacity with variable temperature control.
XSD Series Applications
The Balteau XSD Series is suited to industrial radiographic testing applications where controlled X-ray generation and supporting system equipment are required.
Potential applications include:
- Weld inspection
- Industrial fabrication
- Component inspection
- Manufacturing
- Oil and gas
- Petrochemical
- Power generation
- Heavy engineering
- Pipeline inspection
- General industrial NDT
Selecting the Right XSD System
The appropriate XSD configuration depends on the inspection application, material and thickness being examined, required X-ray energy, operating environment and system requirements.
The generator range provides four power configurations:
Model Maximum Voltage Power XSD160 160 kV 4 kW XSD225 225 kV 4 kW XSD320 320 kV 4.5 kW XSD450 450 kV 4.5 kW The XSD system can also incorporate dedicated control and cooling equipment, allowing the overall configuration to be matched to the requirements of the application.
A Complete X-Ray System Approach
The XSD Series extends beyond the X-ray generator itself. Dedicated control units and cooling systems form part of the wider equipment range, providing the components required for complete industrial X-ray installations.
This modular approach allows customers to select the appropriate combination of X-ray generator, control system and cooling equipment according to their application.
Balteau NDT X-Ray Solutions
The XSD Series forms part of the wider Balteau NDT X-Ray Solutions range supplied by Industronic Engineering & Supplies.
Balteau’s product portfolio includes portable generators, mobile and stationary X-ray equipment, crawlers and real-time radiography systems.
Request a Quote
Looking for a Balteau XSD Series X-ray system?
Contact Industronic Engineering & Supplies for product information, technical assistance, availability and pricing.
